How To Make Laminated Glass A Step-By-Step Guide

To make laminated glass, sandwich two sheets of glass with a strong interlayer of polyvinyl butyral (PVB), then press and heat the assembly until the layers fuse seamlessly. This process results in a durable, shatter-resistant material perfect for windows and safety applications.

Laminated glass is crafted by bonding multiple layers of glass with a resilient plastic interlayer, primarily PVB. This creates a product that’s not only safer but also provides added insulation and UV protection. The key steps involve cleaning the glass, assembling the layers with the PVB sheet in between, and then applying heat and pressure to bond everything into one solid piece. Whether you’re a professional or a DIY enthusiast, understanding the basics of lamination can help you create windows or decorative panels that combine strength, safety, and aesthetic appeal. Let’s dive into the details of how this fascinating process comes together!

How to Make Laminated Glass: A Complete Guide

Making laminated glass involves several detailed steps that combine safety, craftsmanship, and precise techniques. This process ensures the final product is durable, resistant to impact, and provides safety for various applications. In this guide, we will explore every part of how to make laminated glass, from the raw materials to the final product, with tips to achieve the best quality.

Understanding Laminated Glass and Its Uses

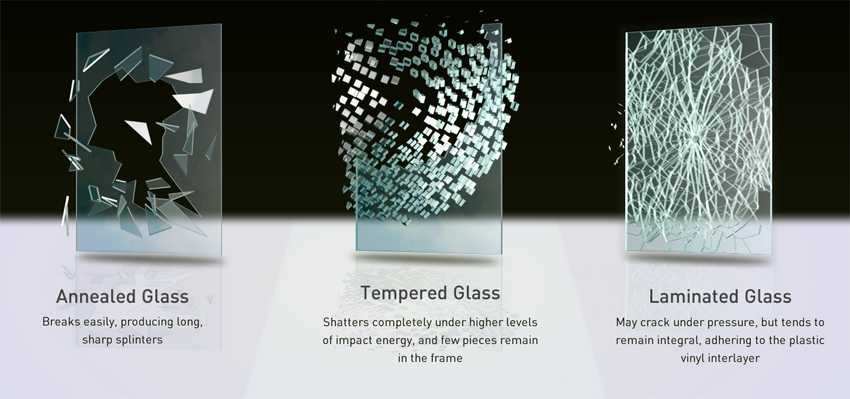

Laminated glass is made by bonding two or more sheets of glass together with a plastic interlayer, usually polyvinyl butyral (PVB). This interlayer holds the glass pieces together when broken, preventing shards from flying around and causing injuries.

Common uses of laminated glass include car windshields, security windows, skylights, and architectural features like façades. Its safety properties and visual clarity make it a popular choice for many construction and automotive projects.

Materials Needed for Making Laminated Glass

Before starting the manufacturing process, gather all necessary materials. These include:

• Glass Sheets: Typically tempered or annealed glass, cut to desired sizes.
• PVB Interlayer: Polyvinyl butyral film, available in sheets or rolls.
• Cleaning Supplies: Isopropyl alcohol, lint-free cloths, and deionized water.
• Adhesive or Sealant: Optional, for sealing edges or adding extra protection.

Ensure all materials are of high quality to produce a safe, long-lasting laminated glass.

Preparing the Glass Sheets

Proper preparation of glass sheets is essential for good lamination. Follow these steps:

Cleaning the Glass

Use isopropyl alcohol and lint-free cloths to thoroughly clean each piece of glass. Remove all dust, grease, or fingerprints, as contaminants can cause bubbles or weak spots.

Checking for Damage

Inspect the glass for cracks, chips, or warping. Damaged glass should not be used as it compromises safety and quality.

Cutting and Shaping

If needed, cut the glass sheets to the correct dimensions using a glass cutter and straightedge. Always wear safety gear during this process.

Layering the Laminate Components

The layering process is crucial for achieving the desired strength and transparency.

Placing the PVB Interlayer

Lay the PVB film on a clean, smooth surface. Carefully position the glass sheets on either side of the PVB, ensuring proper alignment.

Smoothing Out Air Bubbles

Use a roller or a press to eliminate air bubbles trapped between layers. This step is vital for clarity and adhesion.

Assembling the Laminate Stack

Build a firm stack with the glass and PVB in the correct order, typically glass-PVB-glass for double-layered laminates. For multi-layered products, repeat the process accordingly.

Ensuring Uniform Contact

Apply even pressure across the layers to prevent wrinkles, bubbles, or uneven bonding. This can be done manually or with specialized presses.

The Lamination Process: Heating and Pressing

The core of the manufacturing process involves bonding the layers through heat and pressure.

Using an Autoclave or Hot Press

Place the assembled stack into an autoclave or hot press machine, which applies heat around 130 to 150 degrees Celsius (266 to 302 degrees Fahrenheit). Maintain consistent pressure for the recommended time, usually between 30 to 60 minutes.

Monitoring the Process

Ensure temperature and pressure are uniform throughout the operation to prevent weak spots or delamination. Proper cycling guarantees optimal bonding.

Cooling and Trimming the Laminated Glass

Post-lamination, the glass needs to cool slowly to reduce internal stress.

Cooling

Allow the laminated glass to cool gradually at room temperature. Rapid cooling can cause warping or cracking.

Trimming and Finishing

Use specialized glass cutters and grinders to trim the edges to final dimensions. Check for any imperfections and smooth rough edges.

Quality Control and Inspection

Thorough inspection ensures each piece of laminated glass meets safety and quality standards.

Visual Inspection

Look for bubbles, delamination, or uneven surfaces. The glass should be clear and free of defects.
