Laminated glass is created by bonding multiple layers of glass with a durable plastic interlayer, usually polyvinyl butyral (PVB), under heat and pressure. This process results in a strong, safe, and shatter-resistant material that’s perfect for windows and windshields.
In just a few steps, manufacturers carefully assemble the glass sheets with the plastic layer, then heat and press them in specialized equipment to fuse everything together seamlessly. The result is a resilient, transparent sheet that holds together even if broken, providing safety and security.
Have you ever wondered how this impressive material is made? Laminated glass combines craftsmanship and technology to produce a product that’s both functional and protective. Its production involves precise layering, heating, and pressing to ensure strong adhesion and clarity, making it a vital component in safety glass applications worldwide.
How Laminated Glass Is Made

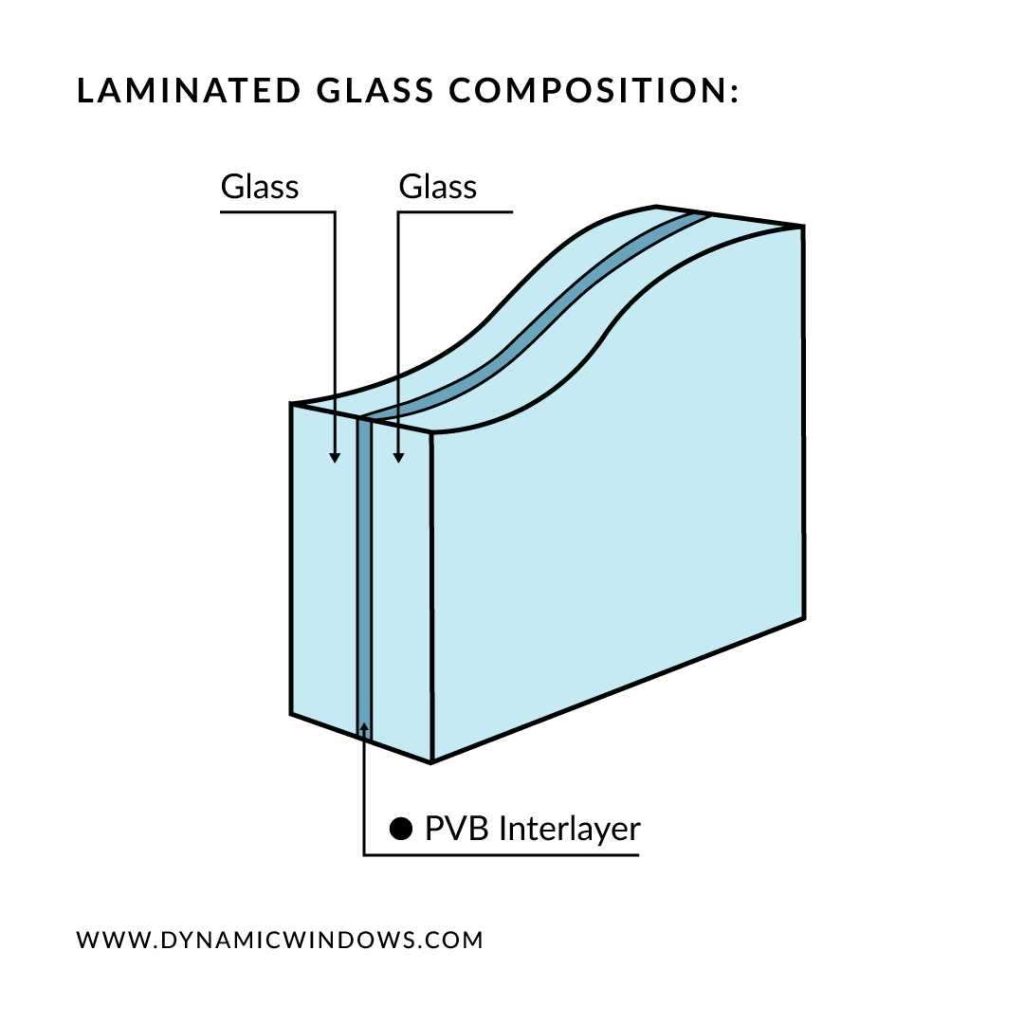

Laminated glass is a special type of safety glass created by bonding two or more layers of glass with a tough, clear interlayer. This process makes the glass much stronger and safer, especially in case of breakage. Understanding how laminated glass is made involves exploring each step from raw materials to the finished product.
Raw Materials Used in Making Laminated Glass
The primary materials for laminated glass are glass sheets and interlayer materials. High-quality silica sand, soda ash, limestone, and other chemicals are melted to produce the glass sheets. The interlayer is commonly made of polyvinyl butyral (PVB), a strong, flexible plastic that holds the glass together when broken. Other materials, like ionoplasts, are also used for special purposes, offering enhanced performance.
The Manufacturing of Glass Sheets
Creating the glass sheets starts with melting raw materials in large furnaces. This molten glass is then shaped into flat sheets through a process called floatation, where the molten glass floats on a bed of molten tin. This technique produces uniform, smooth, and perfectly flat sheets of glass. The sheets are then cooled in an annealing oven, which relieves internal stresses and improves strength.
Cutting and Preparing Glass Sheets
Once cooled, the large glass sheets are cut into smaller, manageable sizes for lamination. The edges are smoothed and cleaned thoroughly to remove any dirt, oils, or imperfections that could weaken the final product. Proper cleaning ensures good adhesion of the interlayer material.
The Role of the Interlayer
The PVB interlayer is essential to the lamination process. It is produced in thin sheets or films, which are cut to match the size of the glass sheets. PVB is chosen because it is transparent, flexible, and bonds well with glass. Its adhesive properties help keep the glass layers bonded tightly, even if the glass breaks.
Preparation of Interlayer Films
The PVB films are checked for defects and cut into precise dimensions. These films are then cleaned and coated with a releasing agent to prevent sticking during the lamination process. Proper preparation of this layer is vital for achieving a clear, high-quality final product.
The Lamination Process
The core of manufacturing laminated glass is the lamination process. This involves stacking glass sheets and the interlayer films, then bonding them together under heat and pressure. The process is performed in a specialized machine called an autoclave or lamination oven.
Stacking and Assembly
First, a glass sheet is laid down, followed by the PVB film. Then, another glass sheet is placed on top, creating a layered stack. For thicker laminates, multiple layers of glass and interlayers are stacked in sequence. Careful alignment is crucial to prevent air bubbles or misalignments, which can affect clarity and strength.
Heating and Applying Pressure
The assembled stack is transferred to the autoclave, where it is heated to approximately 145-155 degrees Celsius (293-311 degrees Fahrenheit). During this step, pressure is applied to help the PVB adhere tightly to the glass layers. This process usually takes about 30 to 45 minutes, depending on the thickness of the laminate.
The Role of Autoclaves in Laminated Glass Production
Autoclaves are high-pressure, high-temperature chambers that ensure the PVB interlayer bonds strongly with the glass. The pressure forces out any air bubbles and excess adhesive, resulting in a clear, uniform laminate. Proper control of temperature and pressure is essential for producing high-quality laminated glass.
Cooling and Inspection
After the lamination cycle, the glass is slowly cooled down. The cooling process prevents internal stresses and helps maintain the clarity and strength of the glass. Once cooled, the laminated sheets are inspected for defects such as bubbles, delaminations, or scratches.
Final Cutting and Finishing
The laminated glass sheets are then cut to precise sizes and shapes as per customer requirements. Edges are polished and smoothened for safety and aesthetic purposes. Additional treatments like coatings or tinting can be applied at this stage to enhance performance and appearance.
Additional Coatings and Treatments
Special coatings may be added for UV protection, glare reduction, or increased durability. Some laminated glass products feature reflective or tinted films to improve privacy or aesthetics. These treatments are applied after the lamination process and can be customized based on application needs.
Quality Control and Testing
Every batch of laminated glass undergoes rigorous testing to ensure safety, strength, and clarity. Tests include impact resistance, UV transmission, and structural integrity checks. Only products that meet strict standards are approved for use in windows, façades, or vehicle windshields.
Applications of Laminated Glass
- Automotive industry: Windshields and side windows for safety and UV protection.
- Architecture: Large windows, skylights, and glass façades that require impact resistance.
- Security and safety: Bulletproof glass and ballistic-resistant panels for high-security buildings.
- Interior design: Decorative glass with added safety features.
Summary of the Laminated Glass Manufacturing Process
| Step | Details |
|---|---|
| Material Preparation | Production of glass sheets and interlayer films |
| Cutting & Cleaning | Shaping glass sheets and preparing interlayers |
| Stacking | Arranging glass sheets and PVB layers in the correct order |
| Lamination | Heating and applying pressure in autoclaves |
| Cooling & Inspection | Gradual cooling and quality checks |
| Cutting & Finishing | Final shaping, edge finishing, and additional treatments |
Understanding how laminated glass is made helps appreciate its safety features, durability, and versatility. The process combines advanced technology with high-quality raw materials to produce a product that protects and enhances our spaces and vehicles. The careful steps involved ensure that each sheet of laminated glass performs reliably in critical situations.
Laminated Glass Production
Frequently Asked Questions
What are the main layers involved in the manufacturing of laminated glass?
Laminated glass consists of two or more sheets of glass bonded together with an interlayer, typically made of polyvinyl butyral (PVB). The glass sheets are cut to size and cleaned thoroughly before being assembled with the PVB layer in between. This layered structure provides increased strength and safety. The assembly process involves precise alignment to ensure uniform bonding across the entire surface.
Which processes are used to bond the layers of laminated glass securely?
Manufacturers place the glass sheets and interlayer in a lamination press. This press applies heat and pressure, causing the PVB to become tacky and bond tightly to the glass surfaces. The entire process is carefully controlled to eliminate air bubbles and ensure consistent adhesion. After pressing, the laminated unit cools gradually to solidify the bond and maintain clarity.
How does the temperature control impact the lamination process?
Temperature regulation is critical during lamination as it influences the bond quality and clarity of the laminated glass. Heating the assembly to a specific temperature allows the PVB to soften and adhere evenly to the glass. Excessive heat can cause deformation or discoloration, while insufficient heat may lead to weak bonds. Engineers precisely control the temperature to optimize the lamination outcome.
What role does the vacuum or pressure application play during manufacturing?
Applying vacuum or pressure during the lamination process removes air bubbles and ensures the PVB layer bonds uniformly with the glass sheets. A vacuum chamber or hydraulic press applies consistent pressure across the entire surface, which helps achieve a flat, defect-free laminated panel. This step enhances the durability and optical clarity of the finished product.
How do manufacturers ensure the quality of laminated glass after production?
After lamination, manufacturers conduct various tests such as inspection for bubbles, delamination, and optical clarity. They may also perform mechanical strength tests and assess safety standards. These quality checks guarantee that each laminated panel meets safety regulations and performance expectations before it reaches customers.
Final Thoughts
Laminated glass begins with two or more layers of glass and a plastic interlayer, often polyvinyl butyral (PVB). These layers are pressed together under heat and pressure, bonding them securely. The process ensures the glass remains intact even if shattered.
Once laminated, the glass undergoes quality checks to ensure safety and durability. This process enhances its strength and security features, making it suitable for various applications.
In summary, how laminated glass is made involves layering, heating, and pressing glass with a plastic interlayer. This method creates a strong, safe, and durable product, ideal for many modern uses.
