How to Replace Windshield Wiper Blades (7 Arm Types)
Senior Automotive Glass Diagnostic Specialist & Master Technician at CarGlassFix · AGSC Master Certified Auto Glass Technician, NGA Certified Installer, I-CAR Automotive Safety Specialist · 12+ Years in Automotive Glazing, Windshield Structural Bonding, ADAS Camera Calibration & Precision Chip Restoration
To replace windshield wiper blades, raise each wiper arm and lay a towel on the glass under it. If the wipers park under the hood edge, use the service position in the owner’s manual first. Release the connector’s tab, slide the old blade off, push the new blade on until it clicks, and lower the arm gently.
Find the right size and connector before you buy
A replacement blade has to match the length the automaker specifies and the connector on your wiper arm. Trico says a blade that is too short leaves part of the glass unwiped, and one that is too long can scratch the windshield. The driver’s and passenger’s blades are often different lengths. To find your length, use the wiper blade size finder.
The owner’s manual is the first place to look. Ford lists the blade part number under Capacities and Specifications, Motorcraft Parts. Tesla’s service page for the Model S gives 26 inches (650 mm) for the driver’s side and 20 inches (500 mm) for the passenger’s side.
Bosch, Rain-X, Trico, Michelin and ANCO all run online lookups that match blades to your vehicle. To size an old blade, Trico says to measure the rubber and ignore the metal frame. Most aftermarket blades come with a J-hook adapter fitted and other adapters in the box, according to Trico. ANCO recommends replacing both blades as a pair, with the same type and brand on each side.
Wiper arm connectors and how each one releases

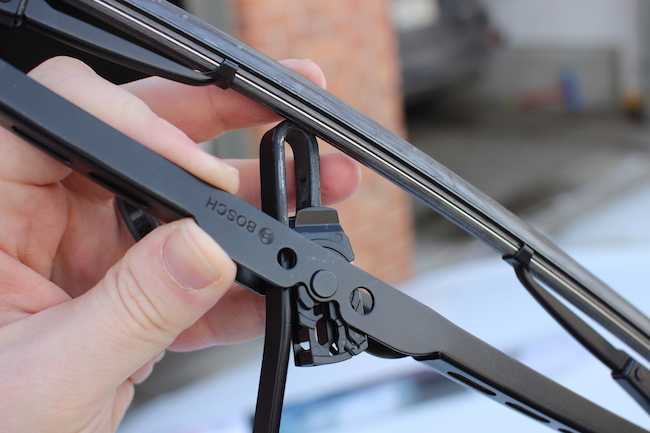

Each connector type releases with a different motion, so identify the arm before you pull on the blade. Toyota calls the J-hook, also known as the U-hook, the most common wiper blade connector. Trico’s installation-video finder lists 68 arm-type entries, front and rear. The table covers seven front styles named by Toyota, Trico, ANCO, DRiV and Bosch.
| Connector | How to spot it | Sizes listed | How to release the old blade |
|---|---|---|---|
| J-hook (U-hook) | Arm ends in a J-shaped hook | 9×3 mm, 9×4 mm | Press the tab, then slide the blade toward the base of the arm until it unhooks (Trico, Honda) |
| Pinch tab | Two tabs on the connector | Not listed | Squeeze both tabs and slide the blade off (Trico, Toyota) |
| Side pin | A pin on the arm enters the side of the blade | 3/16 in, 1/4 in, 17 mm, 19 mm, 22 mm | Rotate the blade free of the arm’s tab, then pull it off the pin (reverse of Trico’s steps) |
| Side lock | Side pin held by a lock cover | Standard and narrow | Lift the lock cover, then pull the blade off the pin (reverse of Trico’s diagram) |
| Bayonet | Straight, flat arm end with a nub on top | 5 mm, 7 mm, 19 mm, 22 mm | Press the nub or spring catch and slide the blade off the end (Trico, DRiV) |
| Push button | Button on the adapter locks into a hole in the arm | 19 mm, 22 mm | Press the button and slide the adapter out of the arm (reverse of Trico’s steps) |
| Top lock | Locking clip on top of the connector | 19 mm and narrow | Lift the clip, then pull the blade down off the arm (Kia’s manual) |
Trico says you should not have to wrestle a blade off. If it will not move, check the owner’s manual before you use force. Ford suggests needle-nose pliers for a stubborn lock tab. Rear arms use other connectors, which the rear blade section covers.
Step by step: how to replace front wiper blades
The order below follows Trico’s guide and the automakers’ own instructions for front blades. Only the release motion in step 4 changes with the connector type.
How to replace windshield wiper blades
Check the new blades
Compare the length and connector with the owner’s manual or fit guide.
Set the service position
Switch the wipers off, which Toyota says matters most with rain-sensing wipers. If the arms park under the hood edge, raise them with the sequence in the owner’s manual.
Lift the arm and pad the glass
Raise the arm until it stays up by itself, usually about 90 degrees (Trico). Lay a folded towel on the glass under the arm.
Release the old blade
Press, pinch or lift the release for your connector and slide the blade off.
Fit the new blade
Remove the plastic protector from the rubber. Push the blade on until it clicks and check that it is not twisted.
Do a push-pull test
Tug the blade along the arm. Tesla warns that a blade that has not clicked can come off during use.
Lower the arm by hand
Set the arm down gently. Honda’s guide lowers the passenger arm first, then the driver’s arm.
Reset and test
Leave the service position as the manual describes. Spray washer fluid and run the wipers at every speed.
Test before you drive. Trico says to clean the windshield first, then run the new blades at every speed and setting with washer fluid. Trico also says never to run wipers on a dry windshield. Volvo warns that running the wipers while the arms are raised can damage the vehicle. If the new blades squeak or chatter, see how to stop windshield wipers from squeaking. Streaks or arcs on clean glass are covered in how to fix wiper marks on windshield. If no fluid sprays, start with how to refill windshield washer fluid.
Protect the windshield: towel and service position
A folded towel or a piece of cardboard under the raised arm protects the glass if the arm springs back. Once the blade is off, the arm is bare metal under spring tension. Kia’s manual warns that a falling arm may chip or crack the windshield. Bosch says to put a cloth or cardboard between the glass and the arm. Trico, Michelin and Tesla say to use a towel.
Some newer cars park the wipers below the hood edge. Toyota says some models need the hood raised to reach the arms, and many brands raise the arms with a service position. Honda warns that its arms may be damaged if they are moved by hand. Check your own manual, because sequences vary by model.
| Brand and source | How to raise the wipers | How to return them |
|---|---|---|
| Honda (2022 Civic Sedan, 2023 Accord, 2024 Integra) | Power ON, then OFF. Within 10 seconds, hold the switch at MIST for over 2 seconds | Power ON, MIST once |
| Kia (2023 Sorento Plug-in Hybrid) | Engine off. Within 20 seconds, hold the switch at MIST for over 2 seconds | Power ON |
| Mazda (2026 CX-30) | Power on, then off. Within 30 seconds, press the switch to MIST twice | Lower the arms, power on, MIST once |
| Ford (support page) | Key on, engine off, wipers on. Switch off when the blades are vertical, then pull the arms until they lock | Not stated |
| Volkswagen (2026 Tiguan) | Hood and front doors closed. Ignition on, then off. Briefly press and hold the stalk-end button to the first level | Ignition on, same button |
| Volvo (S90) | Settings, Controls, Mirrors and wipers, Wipers, Wiper service position | Fold the arms down, then switch it off or start driving |
| Tesla (Model S) | Park, wipers off, then Controls, Service, Wiper Service Mode. The arms do not lock up | Turn the mode off |
If an arm has already struck the glass, look for a chip at the point of impact. Our guide to what causes windshield cracks explains how a chip can spread.
How to replace a rear wiper blade
A rear wiper blade is replaced with the same steps as a front blade, but the clip is usually different. ANCO publishes 12 rear connector guides, including Roc Lock 2, 3 and 4, Snap Claw, Bull-Nose, Mini Bayonet, Cross Pin and Trunnion. Trico says factory rear blades come in conventional and beam designs, with several arm connections.
Ford’s rear procedure shows the motion for a cross-pin arm. Hold the arm away from the glass near the joint between arm and blade. Press on the joint from beneath to free the blade’s cross pin. Press the new blade in until it clicks. Ford warns that excessive force can break the arm at the heel, and that rotating the blade can trap your hand.
Honda’s rear procedure uses a tab: press and hold it, then slide the holder off the arm. Honda notes that a dropped arm may damage the rear window. If the old blade has already marked the glass, see how to fix rear windshield wiper scratches.
Beam, conventional or hybrid: which blade to buy
The three blade types differ in how they spread the arm’s force along the glass. Trico and ANCO describe them in matching terms, and the table follows their wording.
| Type | Construction | Pressure on the glass | Notes |
|---|---|---|---|
| Conventional | Frame and truss (bridge) over the rubber, one J-hook or U-hook connector | 6 to 8 pressure points, by length (Trico) | Lowest price (Trico). Refills work if the frame is not bent (ANCO) |
| Beam | No frame or superstructure (ANCO) | Pressure along the whole blade (Trico, ANCO) | Fewer moving parts for ice and snow (ANCO). The rubber is integral, so the whole blade is replaced |
| Hybrid | Beam-style aerodynamics with the set pressure points of a bridge blade (ANCO) | A mix of beam and conventional designs (Trico) | Fitted mainly as original equipment on import vehicles from Asia (Trico) |
You can change the type at replacement time. ANCO says conventional blades can be upgraded to beam blades. The connector still has to fit your arm, so check the fit guide for the new type. Trico adds that beam blades avoid the winter failures of the rotating parts in conventional blades. ANCO sells its Transform hybrid blade for cars that came with hybrid blades and as an upgrade for J-hook arms. Trico says premium beam blades can be used in any season and any climate. Whatever the type, Rain-X says a blade that streaks on a clean windshield needs replacing.
When to replace wiper blades
Blade makers and automakers put the replacement interval between six months and a year, and the blade’s condition decides the exact date. Trico says harsh winters and very hot climates both justify the six-month schedule.
| Source | What it says |
|---|---|
| Toyota | Blades usually last 6 to 12 months, but this is not a set rule |
| Tesla (Model S) | Replace the blades at least once a year |
| Volkswagen | Check the blades every 10,000 miles |
| Trico | Change them every six months as a general rule |
| Rain-X | Check every six months and change at least once a year |
| ANCO | Change every six to twelve months, depending on conditions |
| Bosch (Australia) | About every 12 months, sooner with heavy use in bad weather |
Replace the blades sooner if they show wear. Rain-X, Trico and ANCO list the signs: cracks, tears or splits in the rubber, rounded wiping edges, rubber pulling away from its support, stiff rubber that chatters or skips, a bent frame or arm, and corrosion at the joints. Rain-X says a blade left parked for a long time can take a curve and skip. Michelin promotes November 16 as International Check Your Wipers Day. For a full inspection routine, see how to check windshield wipers for wear.
Frequently asked questions
Can I replace windshield wipers myself?
Yes. Trico calls it a fairly simple task you can usually do yourself, and Toyota says most cars need no tools. If new blades do not fix a wiper that stalls or will not park, see how to fix windshield wipers.
How do I unclip my windshield wipers?
Find the release where the blade meets the arm. Press the tab on a J-hook and slide the blade toward the base of the arm. Squeeze both tabs on a pinch tab, and press the button or nub on push button and bayonet arms.
How do you change wiper blades with a J-hook?
Press the tab, slide the old blade toward the base of the arm until it unhooks, then push the new blade into the hook until it clicks.
Should I replace both wiper blades at the same time?
Yes. ANCO recommends replacing wiper blades in pairs, with the same type and brand on both sides.
Sources
- Trico: How to Replace Your Windshield Wipers, wiper blade size guide, How Windshield Wipers Work and Four Signs You Should Replace Your Wiper Blades (checked 24 October 2026)
- Trico installation video finder, Trico connector diagram and Trico installation videos for side pin, side lock, bayonet and push button arms
- ANCO: Frequently Asked Questions, When to Replace Wiper Blades and rear blade installation guides
- Rain-X: Wiper Blade Information and Maintenance and Rain-X help center: choosing the right size
- Bosch: Tips and tricks for replacing wiper blades (2024), Bosch Australia wiper blade flyer (2019) and Bosch ICON program flyer (2023)
- Michelin: How to choose your Michelin wiper blades and International Check Your Wipers Day
- DRiV: windshield wiper connectors
- Toyota: How to Change Windshield Wiper Blades
- Ford: How do I change my Ford’s windshield wiper blades?
- Honda owner’s manuals: 2022 Civic Sedan, 2023 Accord, 2024 Integra and a 2019 Honda guide with the rear blade procedure
- Kia 2023 Sorento Plug-in Hybrid owner’s manual: front windshield wiper blade
- Mazda 2026 CX-30 owner’s manual: raising the front windshield wipers
- Volkswagen 2026 Tiguan quick-start guide: windshield wipers and Volkswagen: wiper blade replacement
- Volvo S90 support: activating the wiper service position
- Tesla Model S service: Replacing Wiper Blades
